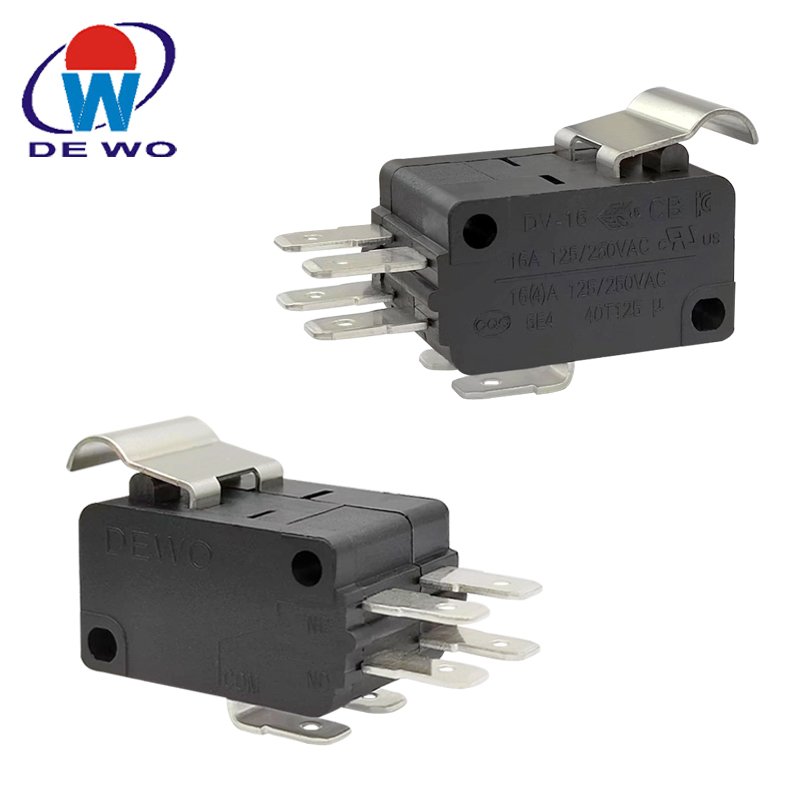

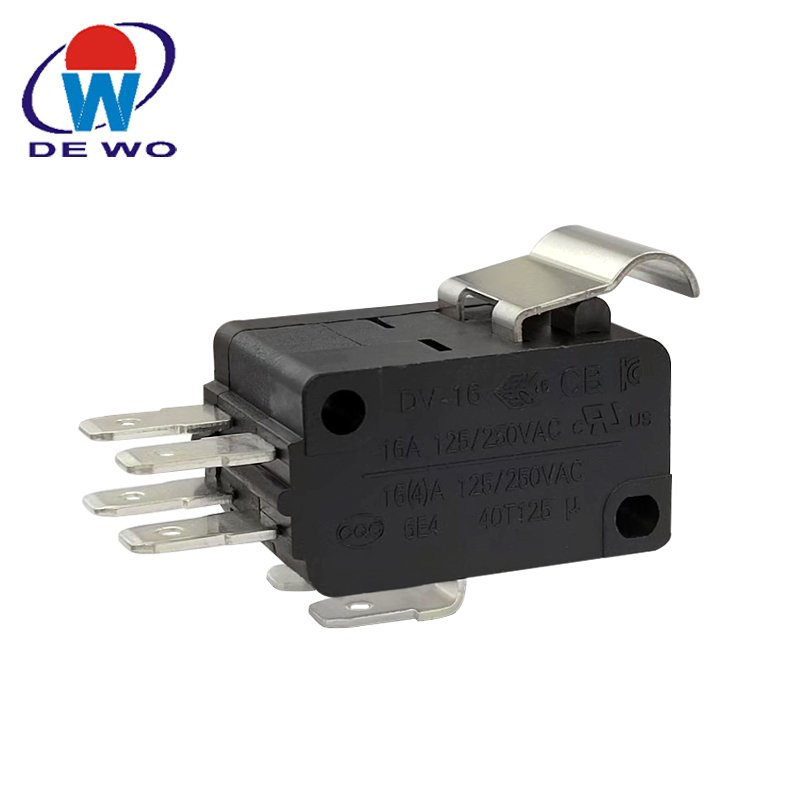

The DV Double Micro Switch is a compact, high-precision electrical switch designed to deliver reliable dual-circuit control within a single housing. By integrating two independent switching mechanisms in one unit, this switch allows simultaneous or sequential control of two separate circuits, making it ideal for applications that demand redundant safety, dual-position detection, or multi-functional operation.
DV Double Micro Switches are widely used in industrial automation, machinery, household appliances, automotive systems, and limit control applications where space-saving design and reliable performance are essential. Built with robust materials and precision snap-action mechanisms, they offer excellent repeatability, long electrical life, and high resistance to environmental factors.
Like a standard micro switch, the DV Double Micro Switch uses a snap-action mechanism to change the electrical state rapidly with minimal actuator movement. Inside the housing, two sets of contacts operate independently, each triggered by the actuator or a common lever. When the actuator reaches a specified operating force, the contacts ‘snap’ from one position to another, ensuring quick break/make actions with excellent repeatability and minimal contact bounce.
This dual configuration allows the switch to:
Control two independent circuits at the same time
Provide redundant switching for safety-critical functions
The detection of multiple positions or states can be achieved through a single switch component.
✅ Dual Independent Circuits — Two micro switches in one housing for space-saving dual control.
✅ Snap-Action Mechanism — Fast, reliable switching with minimal contact bounce.
✅ High Durability — Long mechanical and electrical lifespan, typically millions of operations.
✅ Flexible Actuator Options — Lever, roller lever, plunger, or customized actuators.
✅ Wide Electrical Ratings — Supports low-current signal switching to higher load currents.
✅ Compact Design — Saves space and simplifies wiring in complex installations.
✅ Reliable Performance — Excellent resistance to dust, vibration, and environmental stress.
✅ Customizable Terminals — Quick-connect, solder, or PCB terminals to suit your application.
The DV Double Micro Switch is widely used in:
Industrial Automation: Dual position limit detection for machinery and production lines.
Elevators & Lifts: Safety interlocks and door position detection.
Home Appliances: Dual-function switches in washing machines, microwave doors, or air conditioners.
Automotive Systems: Seatbelt detection, pedal position sensing, or safety cut-off circuits.
Medical Devices: Precise multi-point detection in diagnostic or monitoring equipment.
Robotics: Position feedback for robotic arms or end-effectors.

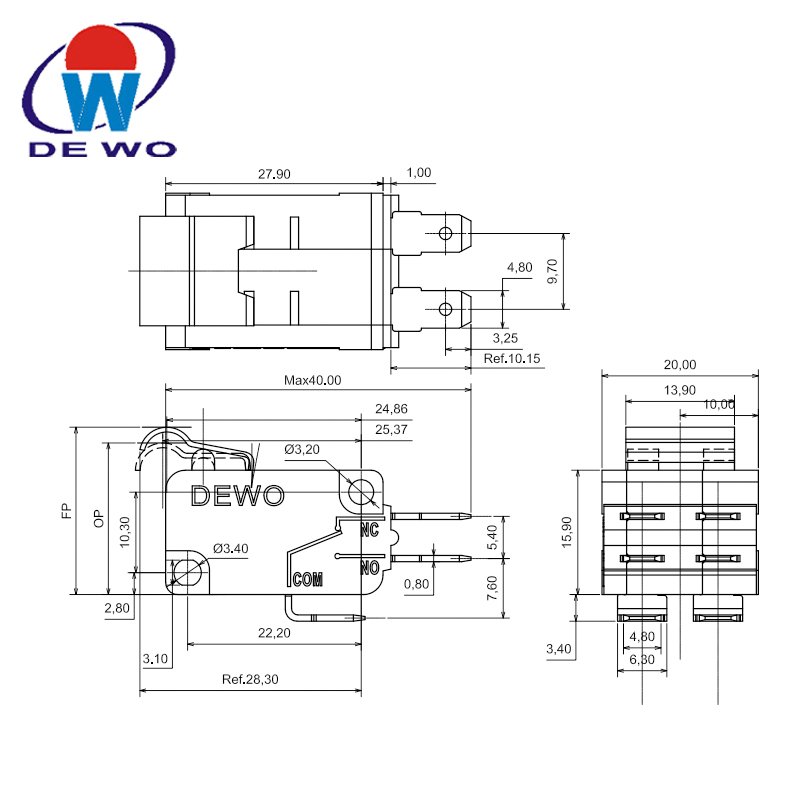

| Item | Specification |
| Contact Configuration | DPST or DPDT |
| Rated Voltage | AC 125–250V, DC 12–30V |
| Rated Current | 5A, 10A, or customized |
| Operating Force | 50–300 gf (varies by model) |
| Mechanical Life | ≥20,000,000 cycles |
| Electrical Life | ≥50,000 cycles |
| Operating Temperature | -45°C to +85°C (higher on request) |
| Protection Class | IP40–IP67 (depends on housing) |
| Terminal Type | Solder, quick-connect, screw, or PCB |
| Actuator Type | Pin plunger, lever, roller lever, etc. |
(Specifications vary by model — consult datasheet for details)
✅ Space Efficiency: Two switches in one reduces installation space and wiring complexity.
✅ Cost-Effective: Fewer components lower assembly and maintenance costs.
✅ Enhanced Safety: Redundant circuits add a layer of protection in critical applications.
✅ Customizable: A variety of configuration options can be provided according to different mechanical and electrical requirements
✅ Proven Reliability: Designed specifically for demanding industrial environments, it features stable and reliable performance.
