Mini micro switch with lever - A mini microswitch with a lever is a compact, mechanical switch that uses a lever arm to activate or deactivate the switch mechanism. It is commonly used in applications where space is limited, and precise control or automation is needed. Here are some typical features of such switches
24.8mm Standard Straight Lever Micro Switch - Rating: 5(2)A 125/250VAC Part No.: SS5-03N1-050 Operation Temperature: -40°C~+125°C
DV 16A 125/250VAC Lever Micro Switch - Parts Number: DV16-A00-MM2 Current and Voltage: 16(4)A 125/250VAC Contact Resistance: 100mΩ max
2 Pins On Off Rocker Switch - 2pin Rocker switch Common in consumer electronics, automotive, appliances, industrial equipment, and other devices requiring a simple ON/OFF switch. Let me know if you need specifications for a particular use case !
Lever roller limit switch - 1. Large capacity, long life, high precision. 2. The switch transmission is rich, and the transmission mode can be customized according to the requirements. 3. Has obtained product certification: UL/CUL, CCC, CE, VDE, the product meets the requirements of RoSH directive.
KW Mini Micro Switch - KW series micro switch Custom special pin microswitch 1A 30vdc for home appliances, industrial controls, automotive buttons, etc
12MM metal push button switch - The 12mm metal pushbutton switch is a compact and robust component used in a wide variety of electronic and mechanical applications. With a diameter of just 12 mm, the switch is designed to be easily integrated into space-constrained devices and systems while still providing a reliable and user-friendly interface. Its metal structure not only enhances its durability, but also increases its beauty, making it suitable for industrial and consumer applications.
Metal toggle switch - A metal button switch is a durable and stylish electrical switch designed to control circuits with a simple press. Made from high-quality metals like stainless steel or aluminum, these switches are known for their longevity, robustness, and sleek appearan Due to their rugged construction, they are resistant to wear and tear, making them ideal for environments where reliability and performance are crucial. Additionally, their aesthetic appeal, paired with modern functionality, makes them a preferred choice for

< >

3 Pin Large Curren Micro Switch

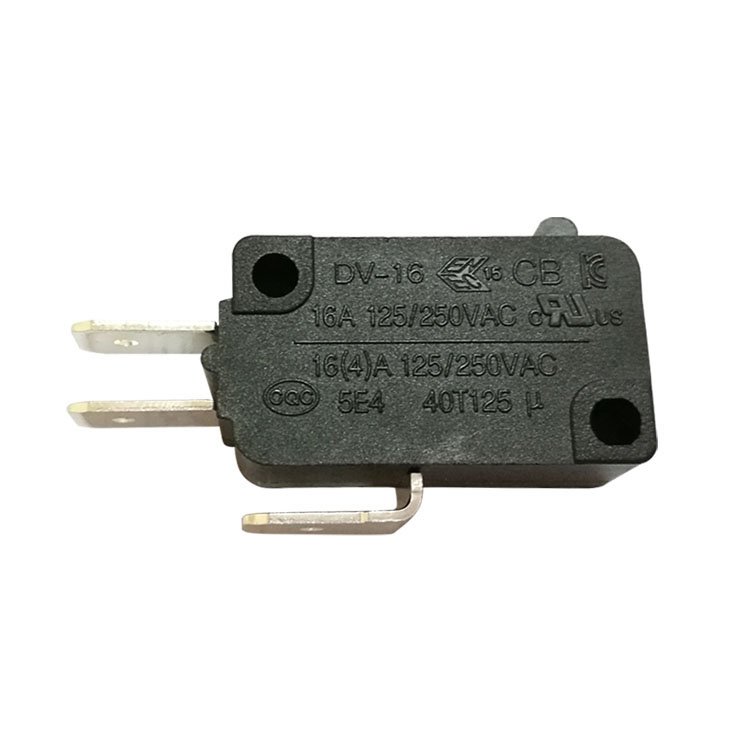

Item: 16a Pin Plunger Micro Switch Model Number: DV-16-A00-NN1-200E Rating: 16(4)A 125/250VAC Temperature Range: -40°C~+125°C

Product Details

Features

● Standard miniature switch with sliver contacts

● Switching current 0.1 to 16A at 250VAC

● Wide variety of auxiliary actuators and terminal options

● Housing material PET (color Black, Grey, White and so on)

● Ambient temperature -40 to max. +125 °C

● Approved according to IEC 61058-1 / UL 61058-1 (25T85 versions) & GB/T15092-1 (40T125 versions)

● Degree of protection IP40

Item	DV16 Micro Switch
Model Number	DV-16-A00-NN1-200E
Rating	16(4)A 125/250VAC
IP Code	IP40
Dimension	27.918.410.3mm
Temperature Range	-40°C~+125°C
Material of Case & Knob	PBT
Material of Contacts	AgNi10
Unit Weight	About 7g
Mechanical Service Life	1,000,000Cycles
Approval	UL, CUL, ENEC, CQC, CB, KC
Electrical Service Life	50,000Cycles
