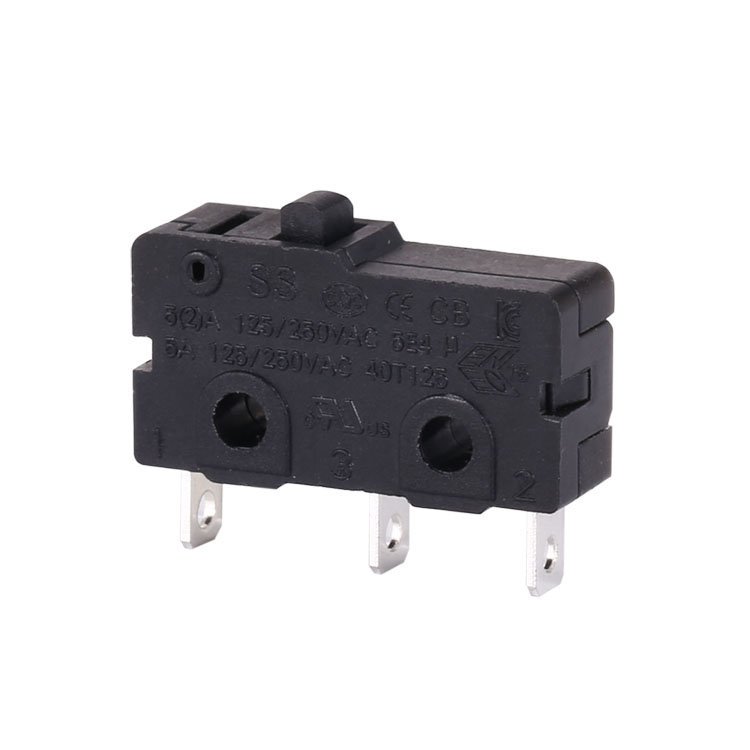

3 Pin Micro Switch

A microswitch, also known as a snap-action switch, is a small, highly sensitive switch designed to operate with very little physical force. The SS type is a common designation in the microswitch industry — “SS” often stands for Subminiature Snap-action Switch, which indicates a compact design with high durability and precise performance.

Product Details

Features

Model Number: SS5-00N1-200

Rating: 5(2)A 125/250VAC

Temperature Range: -40°C~+125°C

Adopt thermosetting plastic or thermoplastic;

Small contact gap, snap action, high sensitivity and small operating travel;

Actuators can also be customized;

Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro

3-pin microswitch typically has three terminals:

Common (COM) — the moving contact inside the switch.
Normally Open (NO) — the circuit is open (off) when the switch is at rest.
Normally Closed (NC) — the circuit is closed (on) when the switch is at rest.

When an external force (like a push, press, or mechanical limit) actuates the lever or button on the microswitch, the internal mechanism rapidly “snaps” the contact from one terminal to the other — switching the circuit from NC to NO or vice versa.

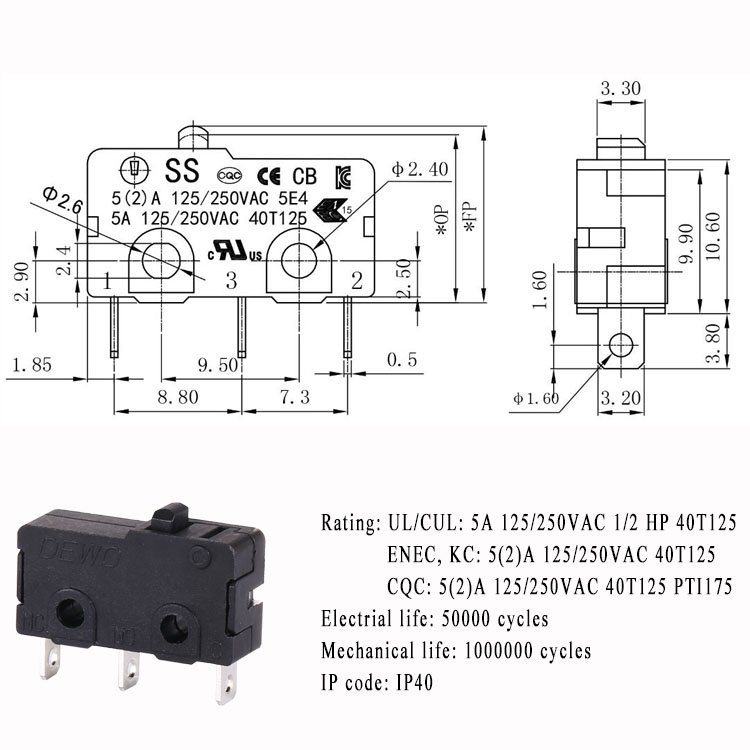

SS 3pin Detail drawing

Our Service

Factory inspection and samples testing available.

Supplied directly from factory for more than 10 years.

New packing design and new product research development.

Accept to customize products up to specification.

Small order welcome.

Payment by Paypal, Western Union is supported.

Provide prompt service and after-sale service.

Packing and delivery

• 200pcs micro switch per blister box, 15 boxes per carton(30*28*19cm), 40 boxes per carton(50*32*25cm)

• Transport by express, by air, by sea, by car or by train is as your requested.

About DEWO

Dongguan DEWO Electronic Technology Co., Ltd was established in 2011. With several years’ experience of research and developing of switch making we became a professional switch manufacturer.

DEWO has passed the ISO9001 and ISO14001system certification successfully and IATF16949.

DEWO main products include: Micro switch series, Slide switch series, tact switch series, Push switch series, etc. And we can product various special switch according to customer requirements. "Realistic, Innovation, Serve Customer" is the common sense of all DEWO staff. Depend on our experienced R&D staff, scientific and meticulous production and testing technology and standardized management system our product passed the UL, CUL, CQC, ENEC, KC etc. international certification as well as the ROHS environmental protection requirements.

DEWO get grate reputation from our clients by excellent quality, reasonable price, perfect after-sale service, and faster delivery. DEWO and our clients get together and to build up brilliant future.
