Mini micro switch with lever - A mini microswitch with a lever is a compact, mechanical switch that uses a lever arm to activate or deactivate the switch mechanism. It is commonly used in applications where space is limited, and precise control or automation is needed. Here are some typical features of such switches
24.8mm Standard Straight Lever Micro Switch - Rating: 5(2)A 125/250VAC Part No.: SS5-03N1-050 Operation Temperature: -40°C~+125°C
DV 16A 125/250VAC Lever Micro Switch - Parts Number: DV16-A00-MM2 Current and Voltage: 16(4)A 125/250VAC Contact Resistance: 100mΩ max
2 Pins On Off Rocker Switch - 2pin Rocker switch Common in consumer electronics, automotive, appliances, industrial equipment, and other devices requiring a simple ON/OFF switch. Let me know if you need specifications for a particular use case !
Lever roller limit switch - 1. Large capacity, long life, high precision. 2. The switch transmission is rich, and the transmission mode can be customized according to the requirements. 3. Has obtained product certification: UL/CUL, CCC, CE, VDE, the product meets the requirements of RoSH directive.
KW Mini Micro Switch - KW series micro switch Custom special pin microswitch 1A 30vdc for home appliances, industrial controls, automotive buttons, etc
12MM metal push button switch - The 12mm metal pushbutton switch is a compact and robust component used in a wide variety of electronic and mechanical applications. With a diameter of just 12 mm, the switch is designed to be easily integrated into space-constrained devices and systems while still providing a reliable and user-friendly interface. Its metal structure not only enhances its durability, but also increases its beauty, making it suitable for industrial and consumer applications.
Metal toggle switch - A metal button switch is a durable and stylish electrical switch designed to control circuits with a simple press. Made from high-quality metals like stainless steel or aluminum, these switches are known for their longevity, robustness, and sleek appearan Due to their rugged construction, they are resistant to wear and tear, making them ideal for environments where reliability and performance are crucial. Additionally, their aesthetic appeal, paired with modern functionality, makes them a preferred choice for

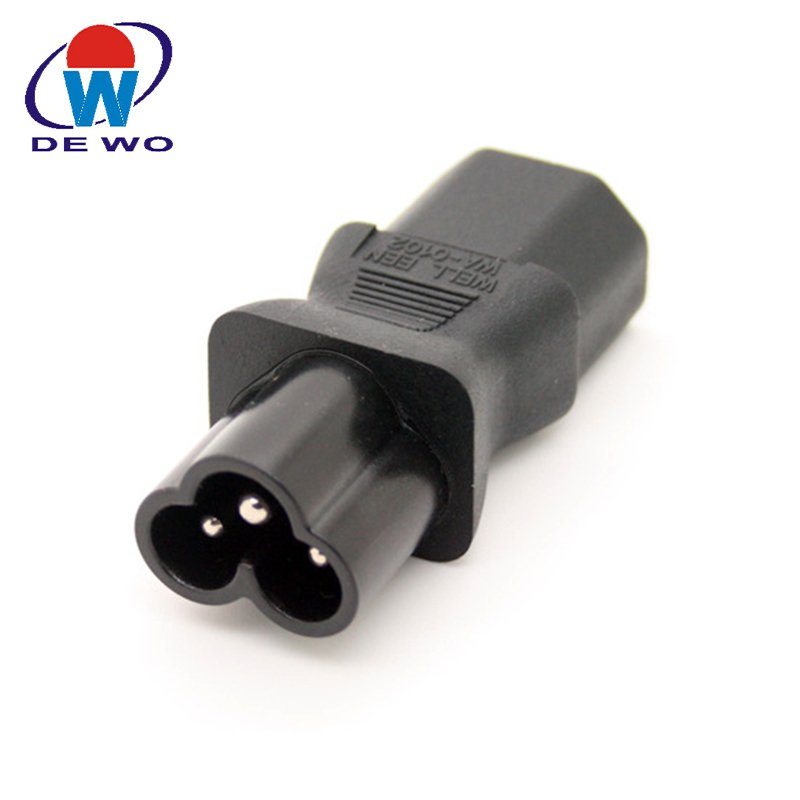

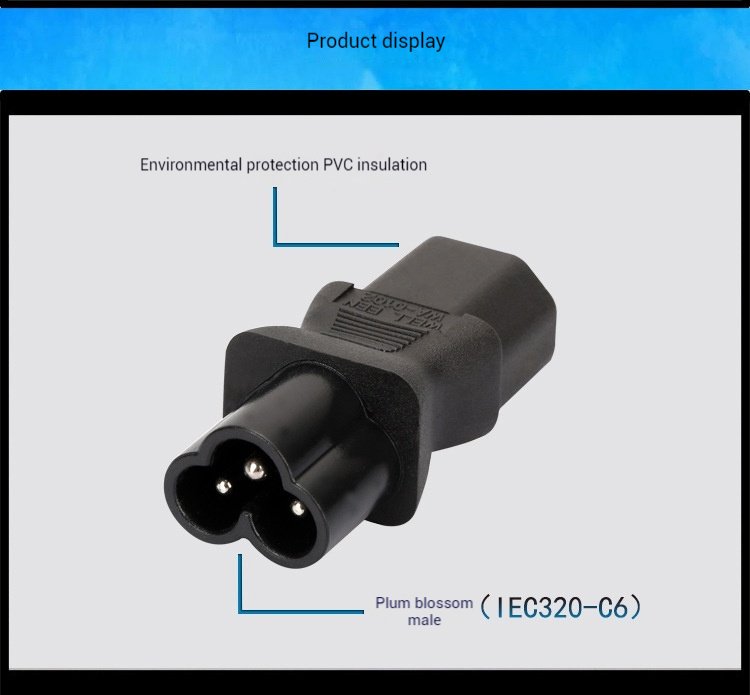

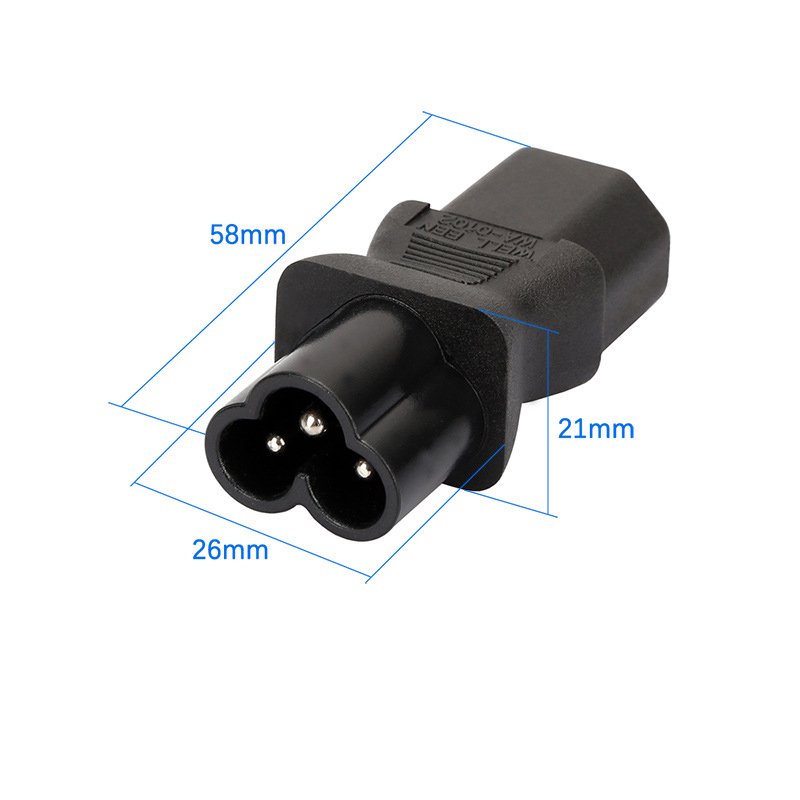

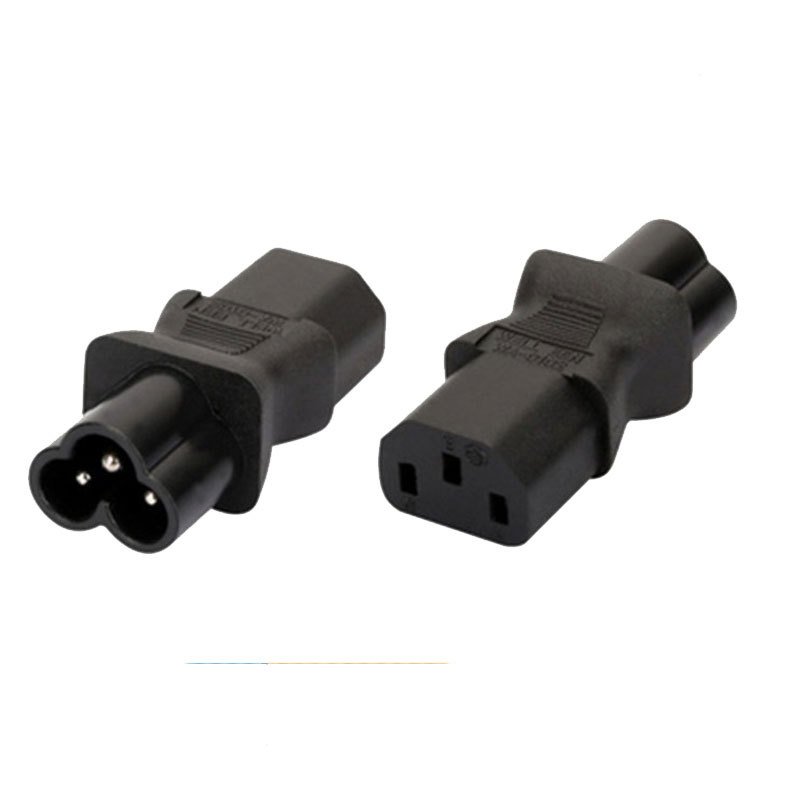

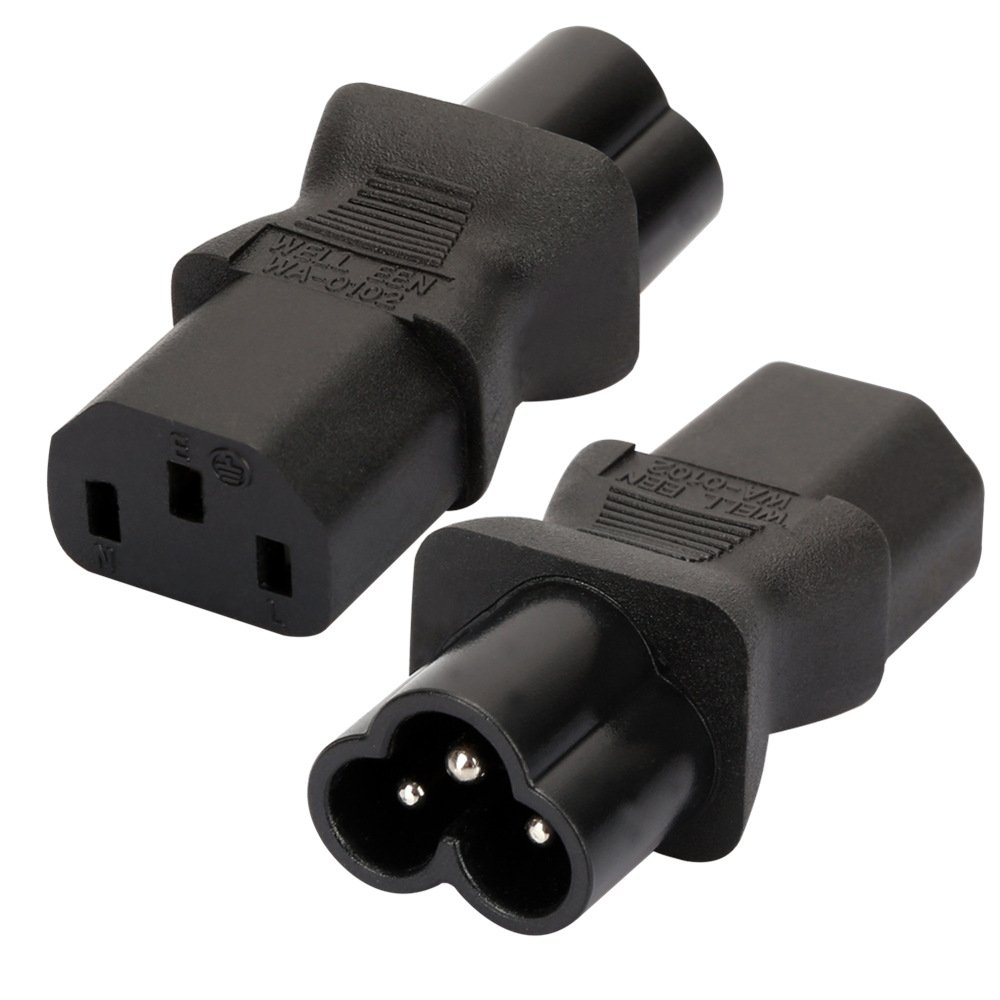

IEC 320-C13 to C6 is a commonly used AC power adapter, commonly used in computers, servers, monitors, monitors and other devices.
1. Physical interface specifications:

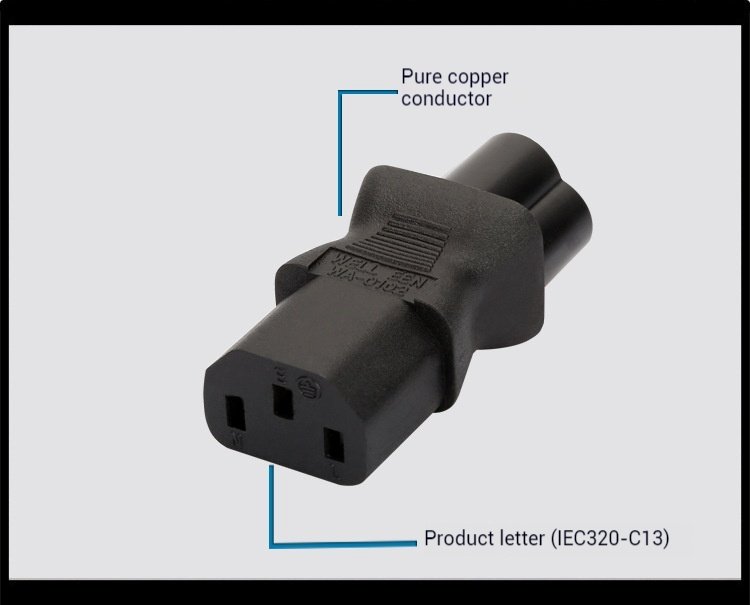

C13 plug: This is a standard three-hole power plug commonly used in many computers, servers, and network devices. Its rated voltage and current are 250V and 10A.
C6 plug: This is a two-hole plug, usually used in some portable appliances, battery chargers, and small power adapters. The rated voltage of the C6 plug is 250V, and the rated current is 10A.
2. Electrical parameters:
Rated voltage: 250V.
Rated current: 10A
Power: 2500W
3. Cable specifications：
The power cable made of copper wire and equipped insulation materials.
Cable specifications: Depending on the current and power requirements, cables such as 18 AWG or 16 AWG may be used, with common lengths of 1 meter, 2 meters, etc.
4. Usage:
Used to connect a power cord with a C13 socket to a device with a C6 plug.
Used in some portable devices or chargers, especially in situations where convenient power connections are needed.
5. Safety standards:
Comply with safety standards such as CE certification and UL certification to ensure safe use.
Comply with electrical safety regulations in various countries/regions, such as the EN60320 standard in Europe or the UL 498 standard in the United States.
